Minelab

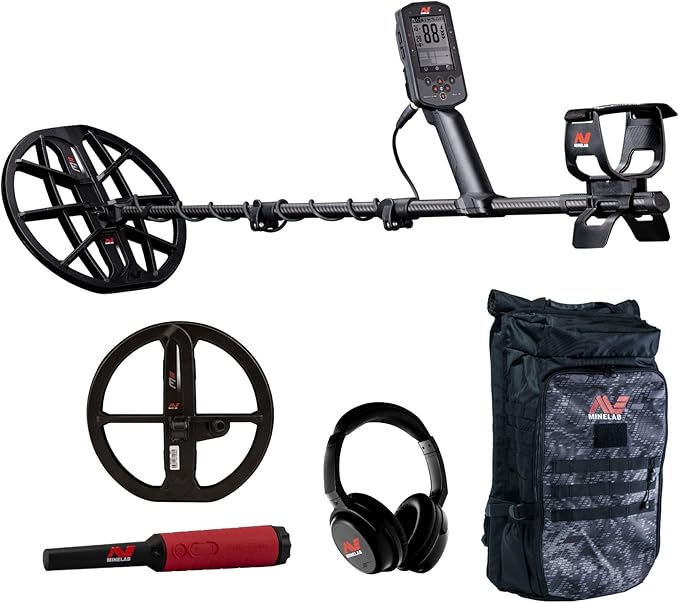

Minelab Manticore Multi-Frequency High Power Waterproof Metal Detector with M9 Coil, PRO-FIND 40 Pinpointer & Backpack
Best for
Coin / Relic
Gold
Beach
Beginner
Intermediate
Advanced
The Minelab MANTICORE is the most advanced, powerful, and precise metal detector ever created by Minelab. Built around the revolutionary MULTI-IQ+ simultaneous multi-frequency technology, MANTICORE delivers up to 50% more power than Minelab’s legendary EQUINOX series, providing greater depth, faster target response, and enhanced target identification across every type of terrain. Combined with advanced 2D Target Identification, superior audio customization, and ultra-fast target separation, the MANTICORE gives detectorists unmatched control and more information with every sweep.
Designed for serious treasure hunters, relic hunters, beach detectorists, and gold prospectors, the MANTICORE pushes metal detecting performance to a whole new level with improved discrimination, enhanced EMI immunity, waterproof construction, and fully customizable search modes
MORE POWER. MORE DEPTH. MORE FINDS.
Here is what you will receive with your Minelab Manticore Metal Detector
- Minelab Manticore High Power, Multi-Frequency, Waterproof Metal Detector
- Minelab 11" Double-D Smartcoil with Skidplate (Installed)
- Minelab ML-105 Wireless Headphones with Case
- Minelab Pro-Find 40 Pinpointer
- Minelab M9 Coil for Manticore
- Minelab Bagpack
- Quick Start Guide
- USB Charging Cable
- Screen Protectors
- 3 Year Warranty
FEATURES
-
MULTI-IQ+ Technology
Minelab’s next-generation simultaneous multi-frequency engine transmits more power across a wider range of frequencies for improved depth, target sensitivity, and target separation in difficult ground conditions. -
Advanced 2D Target Identification
Enhanced target visualization provides more detailed target information and improved Target ID accuracy for better digging decisions. -
Exceptional Target Separation
Ultra-fast response speed helps separate valuable targets from iron trash and heavily contaminated ground. -
Enhanced Discrimination Control
Customizable Ferrous Limits allow detectorists to accept ferrous coins, reject unwanted iron, or maximize target unmasking in difficult hunting environments. -
10 Customizable Search Modes
Includes dedicated modes for:- All-Terrain Detecting
- Beach & Saltwater Hunting
- Goldfield Prospecting
- Custom User Profiles
-
Advanced Audio Customization
Fine-tune your detecting experience with:- Adjustable target tones
- Continuous Pitch (VCO) audio
- EMI noise suppression
- Ferrous tone audio
- Genuine threshold audio control
-
Boosted EMI Immunity
Improved electromagnetic interference rejection allows stable operation at higher sensitivity levels, even in noisy environments. -
Lightweight & Compact Design
Weighing only 1.3 kg (2.9 lbs) with a collapsible design for easy transportation and comfortable all-day hunting. -
Extreme Waterproof Performance
Fully waterproof up to 5 meters (16 feet) with an IP68 rating for underwater detecting in rivers, lakes, surf, and shallow diving conditions. -
Large Color Display & Intuitive Controls
Features Minelab’s most advanced user interface with a bright color screen and simplified navigation for quick adjustments in the field. -
Built-In Lighting & Vibration Features
Includes:- Control pod flashlight
- Auto-adjust display backlight
- Backlit keypad
- Handgrip vibration for low-visibility detecting
Why Choose the Minelab MANTICORE?
- Powered by Minelab’s advanced MULTI-IQ+ engine
- Up to 50% more power than the EQUINOX series
- Faster target recovery and superior separation
- Advanced 2D Target ID system for improved accuracy
- Exceptional depth and sensitivity on coins, relics, and gold
- Waterproof up to 16 ft (5 m)
- Highly customizable audio and discrimination settings
- Lightweight, compact, and built for all-terrain detecting
- Designed for serious detectorists who want maximum performance
| Detect Modes (Customisable) | All-Terrain (5), Beach (4), Goldfield (1) |
| Operating Frequencies | Multi-IQ+, 5 kHz, 10 kHz, 15 kHz, 20 kHz, 40 kHz |
| Noise Cancel | Auto, Continuous Auto, Manual (-9 to +9) |
| Ground Balance | Auto, Manual, Tracking |
| Sensitivity | 1 to 35 |
| Target Identification | Conductive: 0-99 with ferrous indication |
| 2D ID Map | Two-Dimensional ID Map System with Target Trace |
| Target Tones | 1, 2, 5 - Tone | 1, 2, 5 - Region All Tones |
| Target Volume | 0 to 25 |
| Target Pitch | 1 to 50 |
| Ferrous Volume | 0 to 25 |
| Ferrous Pitch | 1 to 50 |
| Audio Themes | Normal, Enhanced, Depth, Prospecting |
| Volume Profiles | Simple, Medium, Rich |
| Threshold Level | 0 to 25 |
| Threshold Pitch | 1 to 50 |
| Recovery Speed | 0 to 8 |
| Ferrous Limits | Upper: 0 to 14 | Lower: 0 to 9 |
| Ferrous Limits Custom | 1 to 4 |
| Shortcuts | Soft Keys: 2 (Action Bar), 1 (User Button) |
| Depth Indicator | 5 levels |
| Shaft System | 3-piece highly collapsible carbon-fibre |
| Extended Length | 1440 mm / 56.7 inch |
| Collapsed Length | 630 mm / 24.8 inch |
| Weight | 1.3 kg / 2.9 lb |
| Standard Coil (M11) | 11-inch round Double-D coil with skidplate (waterproof to 5 m / 16 ft) |
| Audio Output | Speaker | 3.5 mm (1/8") headphones | Wireless low latency headphones |
| Headphones (Included) | Minelab ML-105 wireless low latency headphones (non waterproof) |
| Display | Colour LCD |
| Display Backlight | Manual (1 to 10), Auto Adjust |
| Keypad Backlight | On, Off |
| Flashlight | Low, Medium, High, Off |
| Handgrip Vibration | On, Off |
| Battery | Internal rechargeable Lithium-ion battery |
| Battery Run Time | Approx. 10 hours |
| Battery Charge Time | Approx. 7 hours |
| Waterproof | Waterproof to 5 m / 16 ft, IP68 |
| Key Technologies | Multi-IQ+ (High Power Simultaneous Multi-Frequency) |
| Included Accessories | USB Charging Cable, 5x Screen Protectors, 3.5 mm Headphone Audio Cable, Headphone Case |
| Software Upgradable | Yes, via USB connection (Windows or Mac OS compatible) |
| Warranty | 3 Year |
