Minelab Manticore Waterproof Multi-Frequency Metal Detector with Padded Gear Bag
$1,558.99
$1,858.99Save 16%
Authorized DealerGenuine warranty
Secure CheckoutSSL encrypted
Fast ShippingOrders over $100
Best for
Coin / Relic
Gold
Beach
Beginner
Intermediate
Advanced

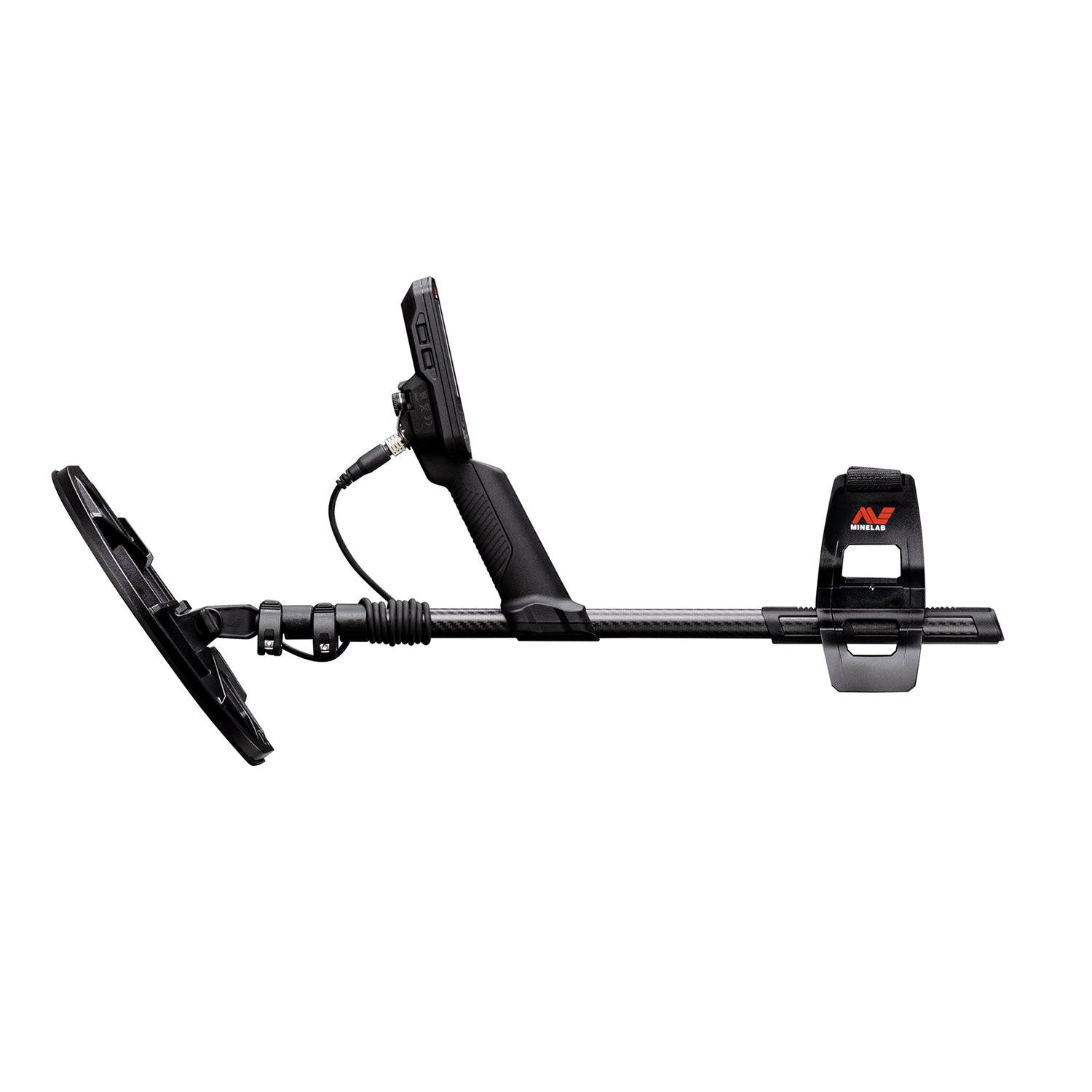

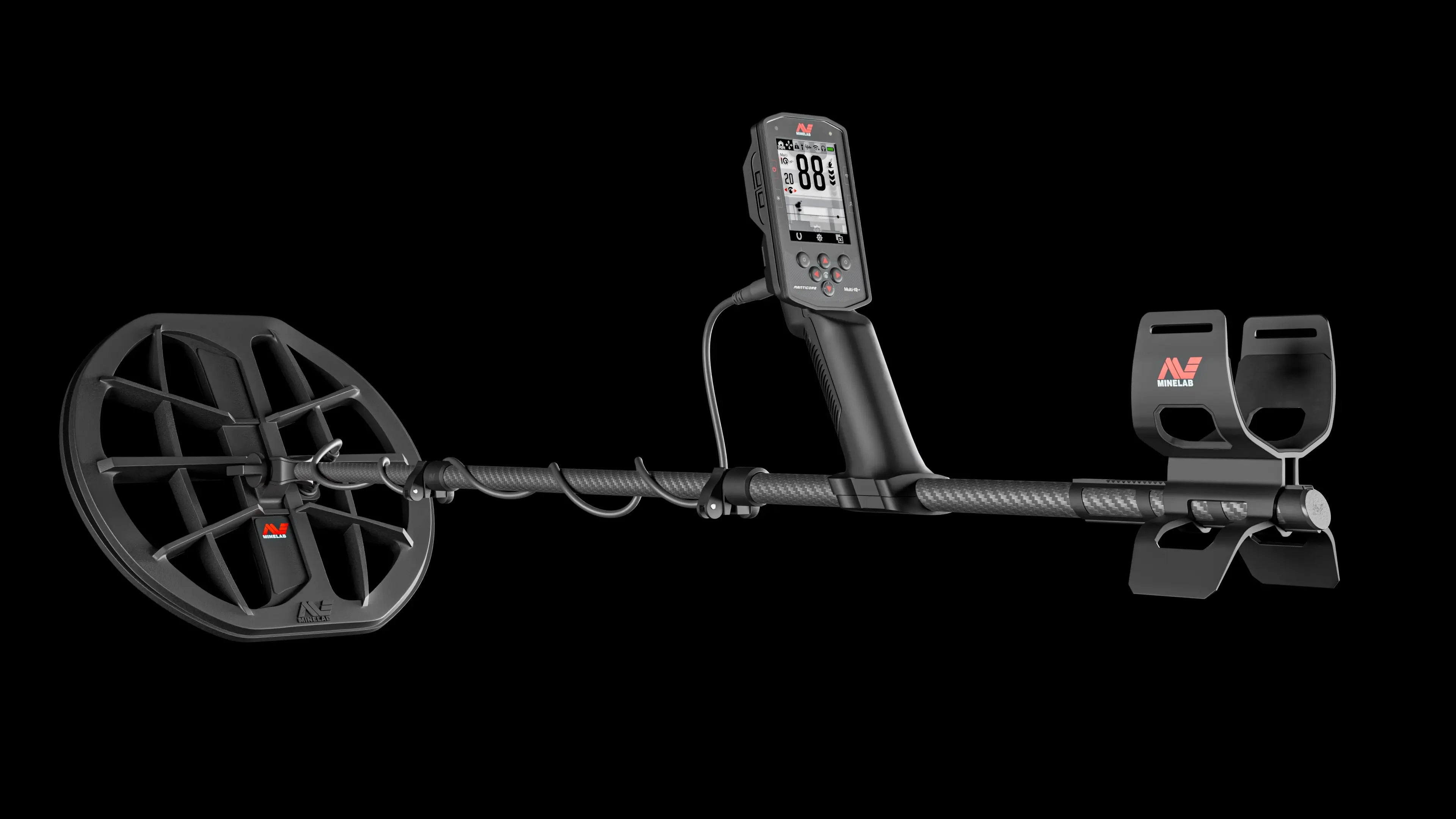

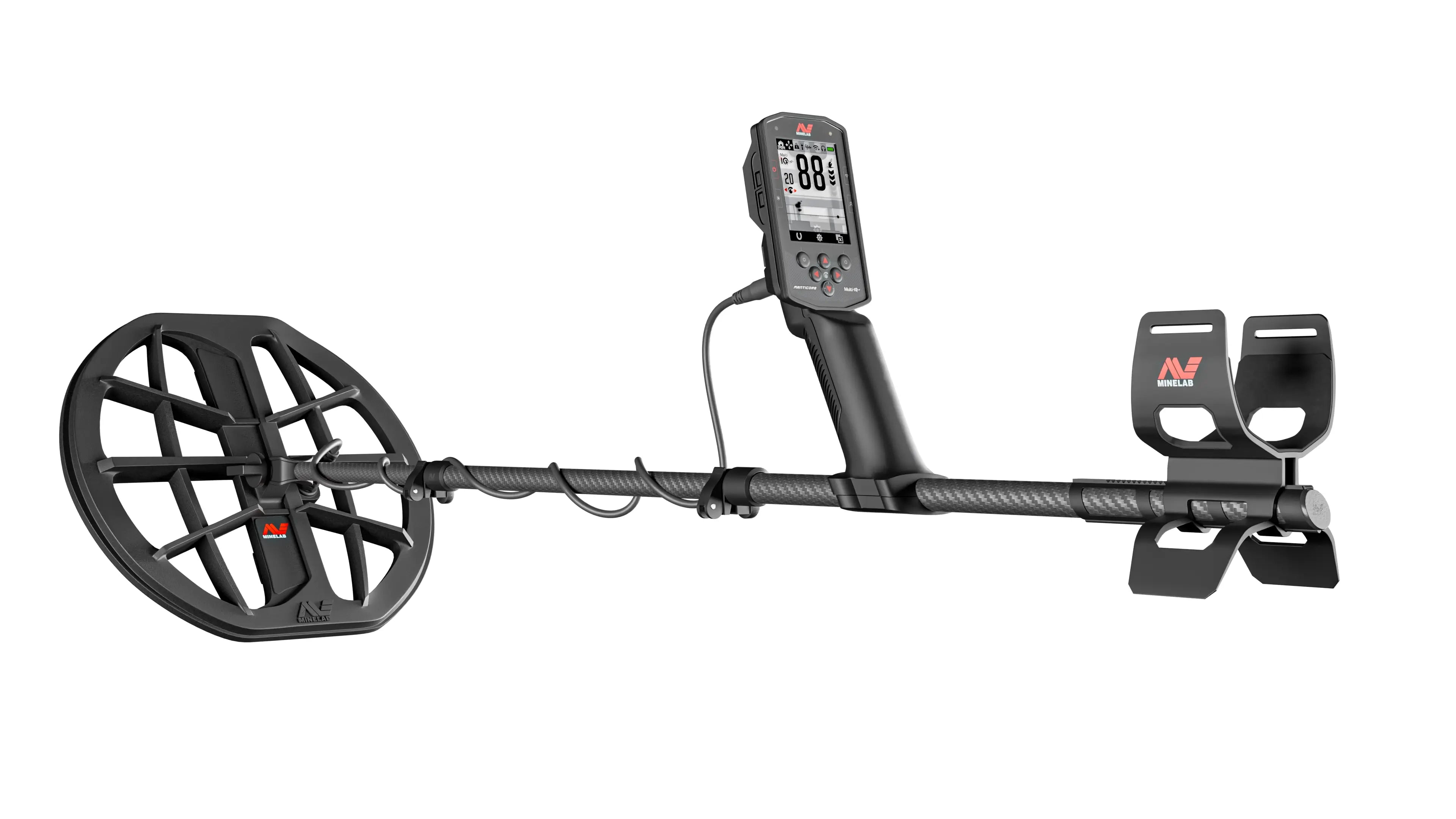

The Minelab Manticore is a cutting-edge, high-performance metal detector designed for serious detectorists seeking extreme depth, precision, and speed. Powered by Multi-IQ+ technology, it offers enhanced target separation, improved mineralization handling, and superior signal clarity—even in the most challenging environments.
Fully waterproof up to 16 feet (5 meters), this all-terrain detector is perfect for beach, relic, coin, and treasure hunting. Paired with a durable Minelab padded gear bag, this bundle provides both protection and convenience for transport and storage.
Key Features
-
Multi-IQ+ Simultaneous Multi-Frequency: Delivers greater target ID accuracy and depth in all soil conditions.
-

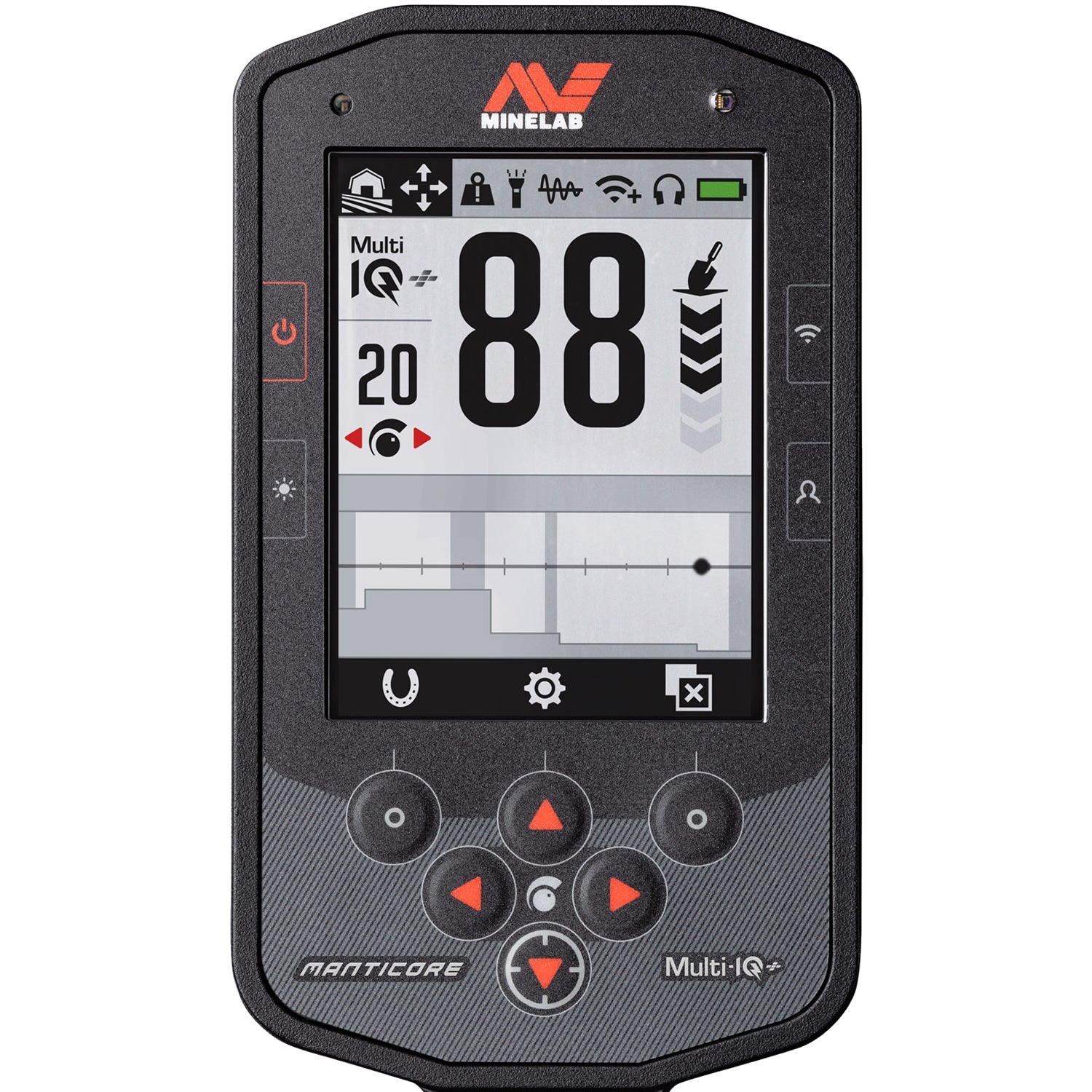

Enhanced Target Trace Visualization: Color display with real-time Target Trace for analyzing target shape and composition.
-

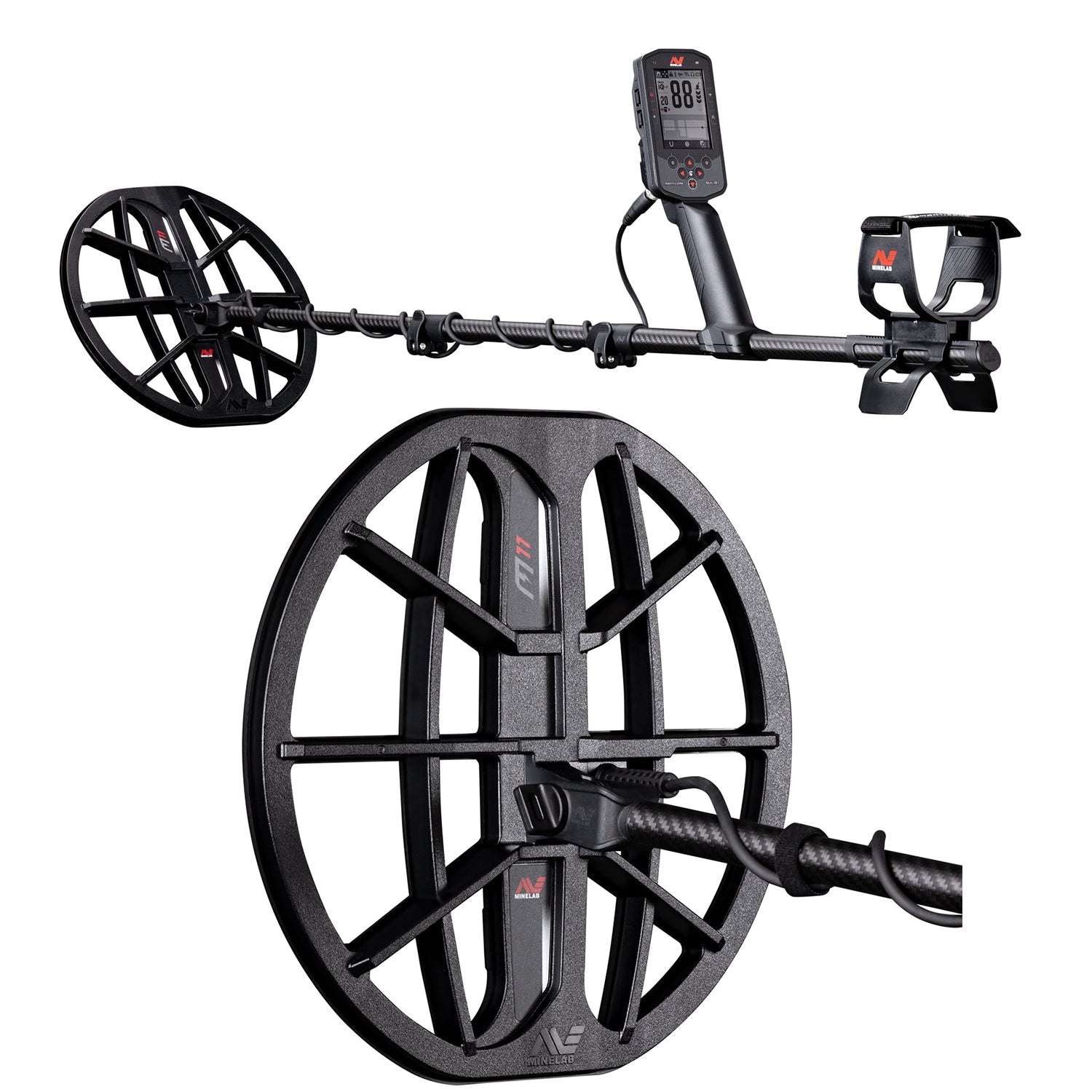

11" DD M11 Coil: Excellent coverage and depth with waterproof design.
-
Waterproof to 16 Feet (5 m): Built for land, surf, or shallow diving environments.
-
Advanced Discrimination & Audio Options: 10+ audio themes, customization controls, and ferrous limit adjustments.
-
Backlit Color Display with Vibration Alerts: Ideal for low-light and silent detection scenarios.
-
Wireless Audio Compatibility: Includes low-latency wireless headphones for real-time target response.
-

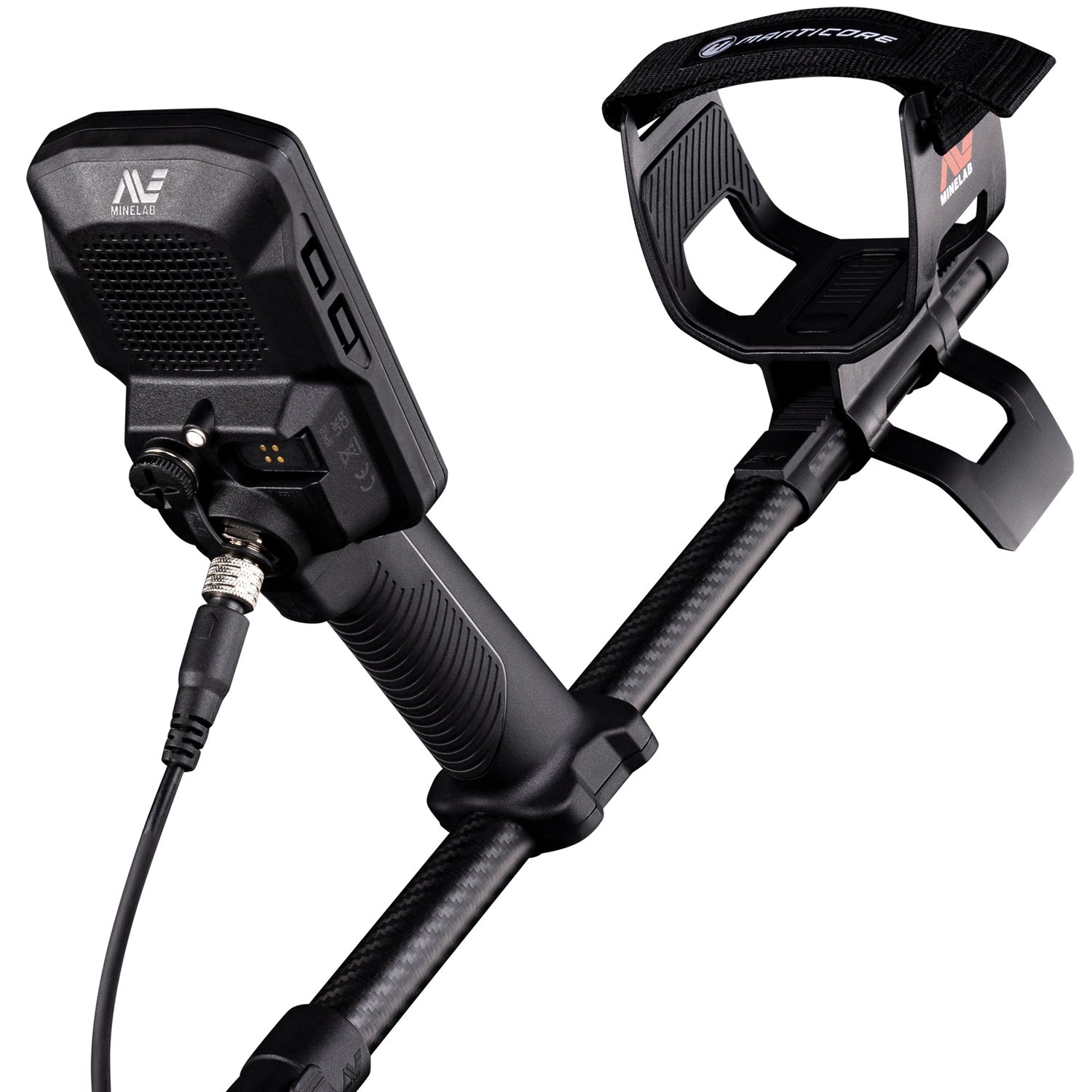

Ergonomic Carbon-Fiber Shaft: Lightweight, collapsible design for easy transport and comfort.

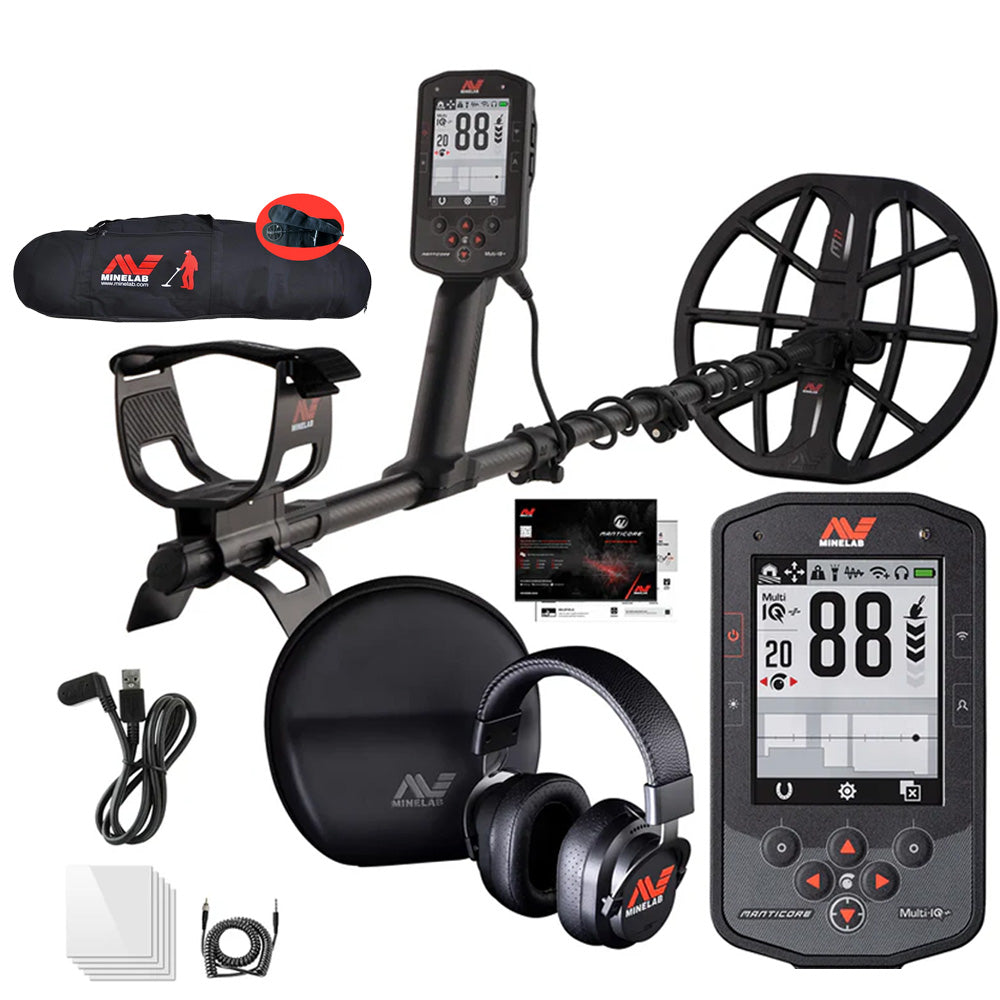

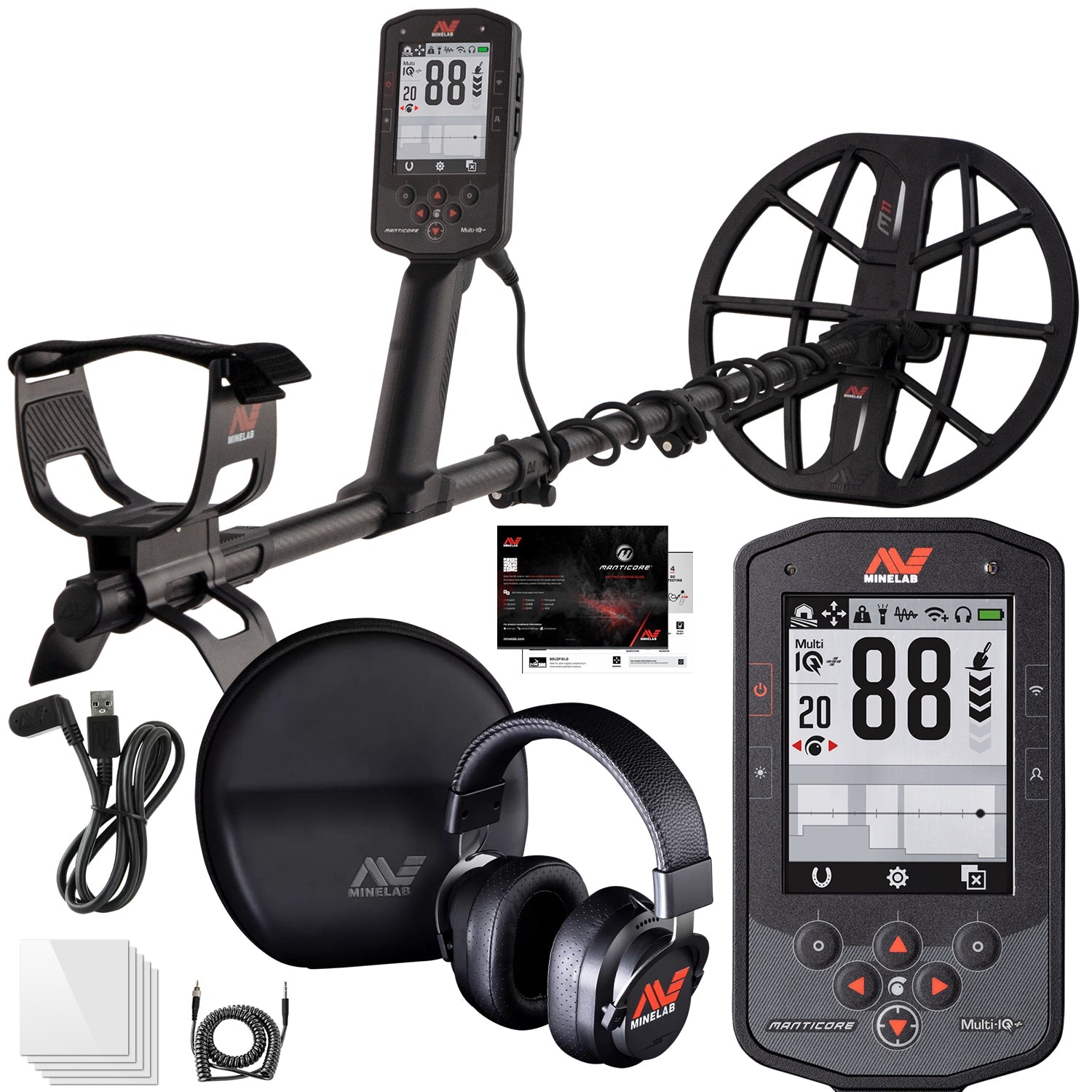

What’s Included
-
Minelab Manticore Metal Detector
-
11" M11 DD Search Coil with Cover
-

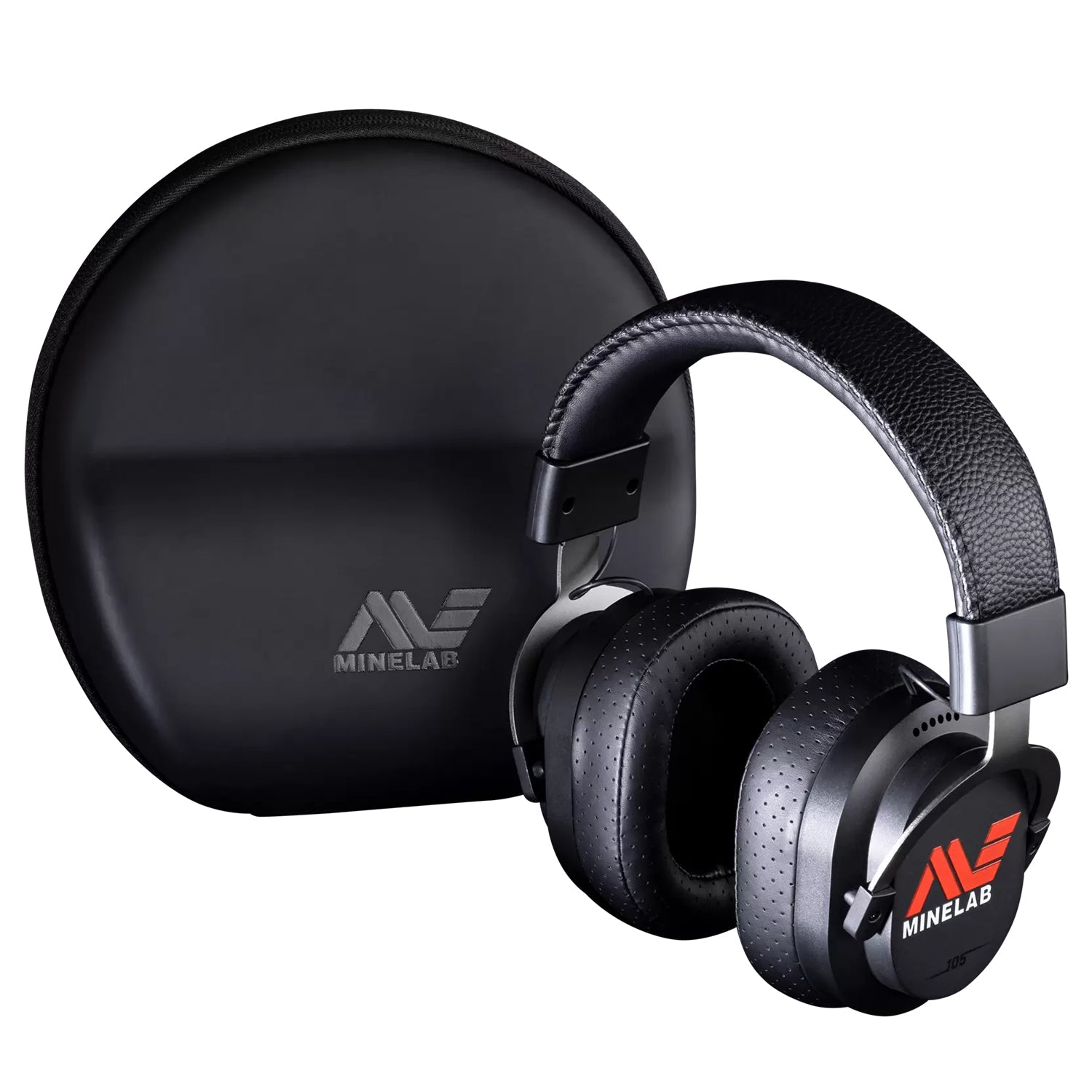

Low-Latency Wireless Headphones
-
USB Charging Cable & Magnetic Connector
-

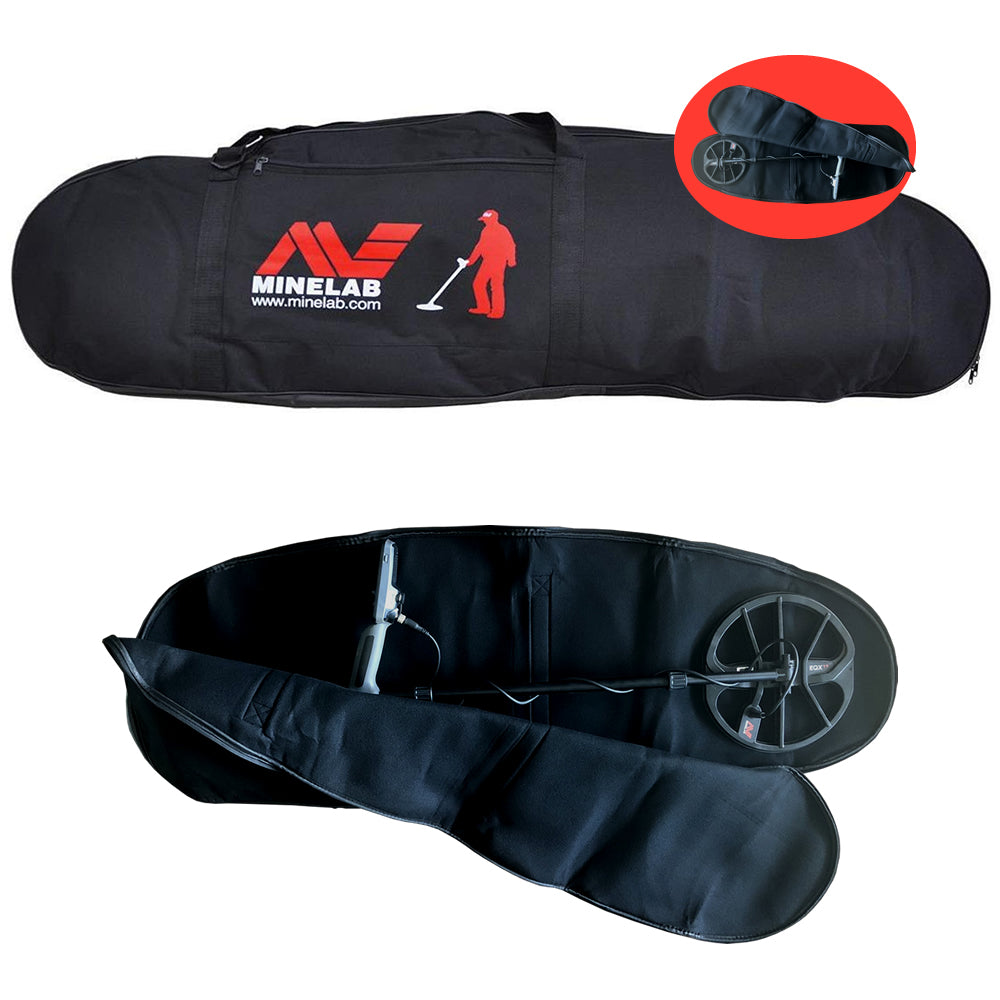

Minelab Padded Gear Bag
-
Quick Start Guide
-
Protective Screen Cover
Ideal For
Professional and advanced hobbyist detectorists who want industry-leading performance, deep detection, and advanced target intelligence across all terrains—including saltwater beaches, mineralized ground, and trash-heavy areas.
Technical Specifications
| Specification | Details |
|---|---|
| Technology | Multi-IQ+ (Enhanced Simultaneous Multi-Frequency) |
| Operating Frequencies | 5 kHz – 40 kHz (Simultaneous or Selectable) |
| Search Coil | 11" DD M11 Coil |
| Waterproof Rating | Fully waterproof up to 16 ft (5 m) |
| Display | Full-color LCD with Target Trace |
| Target ID Range | -99 to 99 |
| Audio Output | Wireless (Bluetooth aptX™ LL) & Wired Options |
| Ground Balance | Auto, Manual, Tracking |
| Search Modes | 10+ Customizable Modes |
| Sensitivity Levels | 35 |
| Recovery Speed Settings | 8 Levels |
| Battery Type | Built-in Rechargeable Lithium-Ion |
| Battery Life | Up to 9 Hours |
| Shaft Design | 3-piece Carbon-Fiber Collapsible |
| Weight | 2.9 lbs (1.3 kg) |
| Included Bag | Minelab Padded Gear Bag |
| Warranty | 3 Years |
| Detect Modes (Customisable) | All-Terrain (5), Beach (4), Goldfield (1) |
| Operating Frequencies | Multi-IQ+, 5 kHz, 10 kHz, 15 kHz, 20 kHz, 40 kHz |
| Noise Cancel | Auto, Continuous Auto, Manual (-9 to +9) |
| Ground Balance | Auto, Manual, Tracking |
| Sensitivity | 1 to 35 |
| Target Identification | Conductive: 0-99 with ferrous indication |
| 2D ID Map | Two-Dimensional ID Map System with Target Trace |
| Target Tones | 1, 2, 5 - Tone | 1, 2, 5 - Region All Tones |
| Target Volume | 0 to 25 |
| Target Pitch | 1 to 50 |
| Ferrous Volume | 0 to 25 |
| Ferrous Pitch | 1 to 50 |
| Audio Themes | Normal, Enhanced, Depth, Prospecting |
| Volume Profiles | Simple, Medium, Rich |
| Threshold Level | 0 to 25 |
| Threshold Pitch | 1 to 50 |
| Recovery Speed | 0 to 8 |
| Ferrous Limits | Upper: 0 to 14 | Lower: 0 to 9 |
| Ferrous Limits Custom | 1 to 4 |
| Shortcuts | Soft Keys: 2 (Action Bar), 1 (User Button) |
| Depth Indicator | 5 levels |
| Shaft System | 3-piece highly collapsible carbon-fibre |
| Extended Length | 1440 mm / 56.7 inch |
| Collapsed Length | 630 mm / 24.8 inch |
| Weight | 1.3 kg / 2.9 lb |
| Standard Coil (M11) | 11-inch round Double-D coil with skidplate (waterproof to 5 m / 16 ft) |
| Audio Output | Speaker | 3.5 mm (1/8") headphones | Wireless low latency headphones |
| Headphones (Included) | Minelab ML-105 wireless low latency headphones (non waterproof) |
| Display | Colour LCD |
| Display Backlight | Manual (1 to 10), Auto Adjust |
| Keypad Backlight | On, Off |
| Flashlight | Low, Medium, High, Off |
| Handgrip Vibration | On, Off |
| Battery | Internal rechargeable Lithium-ion battery |
| Battery Run Time | Approx. 10 hours |
| Battery Charge Time | Approx. 7 hours |
| Waterproof | Waterproof to 5 m / 16 ft, IP68 |
| Key Technologies | Multi-IQ+ (High Power Simultaneous Multi-Frequency) |
| Included Accessories | USB Charging Cable, 5x Screen Protectors, 3.5 mm Headphone Audio Cable, Headphone Case |
| Software Upgradable | Yes, via USB connection (Windows or Mac OS compatible) |
| Warranty | 3 Year |
